  Buzzer series---46 products
:: 13-24products::
Appearance Specifications Enter

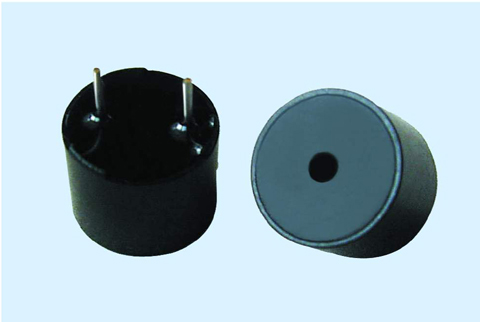

RATED VOLTAGE (VDC) 　6.0/12.0
DIRECT CURRENT RESISTANCE (Ohm) 　36±15%/115±15%
RESONANT FREQUENCY (Hz) 　1000
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

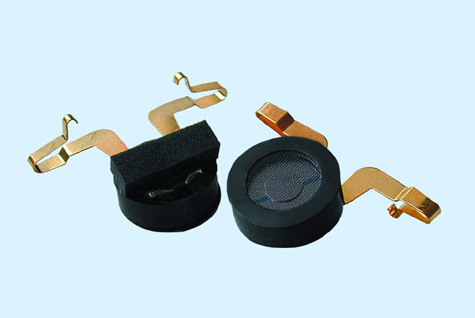

RATED VOLTAGE (VDC) 　1.5/1.5
DIRECT CURRENT RESISTANCE (Ohm) 　6.5±15%/16±15%
RESONANT FREQUENCY (Hz) 　2731/2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85/MIN.80
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　5.0
DIRECT CURRENT RESISTANCE (Ohm) 　45±15%
RESONANT FREQUENCY (Hz) 　2400
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　1.5/6/12
DIRECT CURRENT RESISTANCE (Ohm) 　30±15%/50±15%/115±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　1.5
DIRECT CURRENT RESISTANCE (Ohm) 　50±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.70
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　3.0
DIRECT CURRENT RESISTANCE (Ohm) 　16±15%
RESONANT FREQUENCY (Hz) 　2100
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.96(in house)
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　1.5
DIRECT CURRENT RESISTANCE (Ohm) 　16±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.70
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　1.5
DIRECT CURRENT RESISTANCE (Ohm) 　16±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE
OPERATING VOLTAGE (VDC) 　3-28
RESONANT FREQUENCY (KHz) 　4.5±0.5
SOUND PRESSURE LEVEL30cm/12V(dB) 　MIN.83
 OPERATING TEMPERATURE          (℃) -30－+85
 STORAGE TEMPERATURE            (℃) -40－+95
OPERATING VOLTAGE (VDC) 　3-20
RESONANT FREQUENCY (KHz) 　3.8±0.5
SOUND PRESSURE LEVEL30cm/12V(dB) 　MIN.80
 OPERATING TEMPERATURE          (℃) -20－+70
 STORAGE TEMPERATURE            (℃) -30－+85
RATED VOLTAGE (VDC) 　5.0
DIRECT CURRENT RESISTANCE (Ohm) 　47±15%
RESONANT FREQUENCY (Hz) 　2400
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.88
TERMINAL SMD TYPE
OPERATING VOLTAGE          (VDC) 　25.0
CAPACITANCE         1KHz(pF) 　7000±30%
RESONANT FREQUENCY      3Vp-p(KHz) 　4.0
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.72
TERMINAL .
