您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHJ-1203A

外观图 Appearance

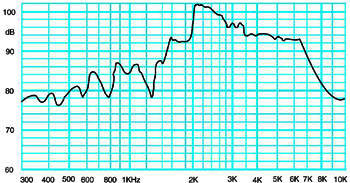

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHJ-1203A
DIMENSIONAL 12.0×8.6mm
RATED VOLTAGE                  (VDC) 3.0
CURRENT CONSUMPTION            (mA) MAX.90
DIRECT CURRENT RESISTANCE      (Ohm) 15±15%
RESONANT FREQUENCY             (Hz) 2100
SOUND PRESSURE LEVEL         (10cm/dB) MIN.96(in house)
OPERATING TEMPERATURE          (℃) -20-+60
STORAGE TEMPERATURE            (℃) -40-+80
WEIGHT                         (g) 2.0
TERMINAL TWO PIN LEAD TYPE

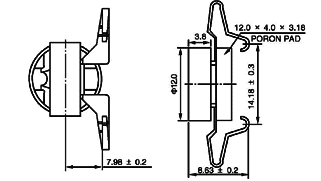

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
