蜂鸣器 PFT-1205H-40


您现在的位置>>公司首页>>产品总览>> 蜂鸣器	SHT-1205H-40

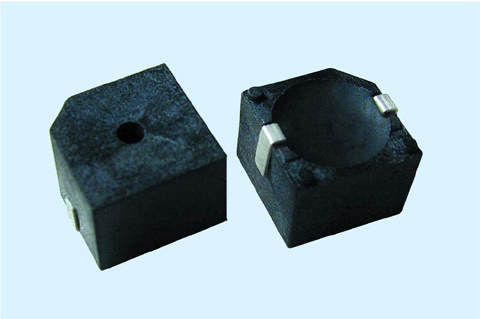

外观图 Appearance

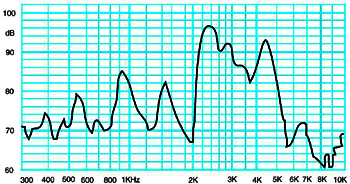

频响曲线 Typical Frequency Response Curve

技术特性 Specifications

MODEL NO	SHT-1205H-40
DIMENSIONAL	12.8×12.8×7.35mm
RATED VOLTAGE (VDC)	5.0
CURRENT CONSUMPTION (mA)	MAX.50
DIRECT CURRENT RESISTANCE (Ohm)	47±15%
RESONANT FREQUENCY (Hz)	2400
SOUND PRESSURE LEVEL (10cm/dB)	MIN.88
OPERATING TEMPERATURE (℃)	-40－+90
STORAGE TEMPERATURE (℃)	-40－+90
WEIGHT （g）	2.5
TERMINAL	SMD TYPE

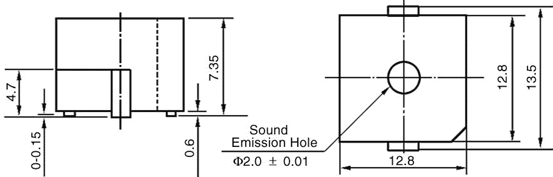

尺寸图 Dimensional Drawing (Tolerance:±0.5mm Unit:mm)
