您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SP-1740AP

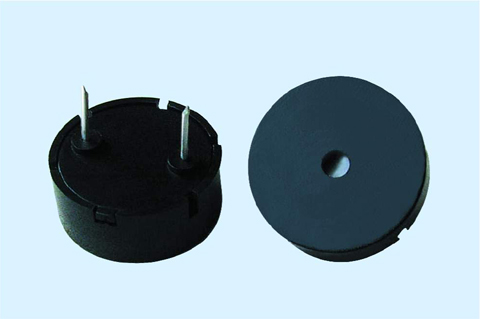

外观图 Appearance

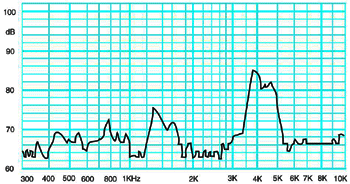

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SP-1740AP
DIMENSIONAL 17.0×7.0mm
OPERATING VOLTAGE                  (VDC) 25.0
CAPACITANCE            1KHz(pF) 7000±30%
RESONANT FREQUENCY             3Vp-p(KHz) 4.0
SOUND PRESSURE LEVEL         10cm/3V(dB,Min) MIN.72
OPERATING TEMPERATURE          (℃) -40-+85
STORAGE TEMPERATURE            (℃) -40-+85
WEIGHT                         (g) 1.0

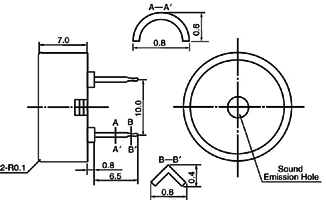

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
