您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SP-2445BW

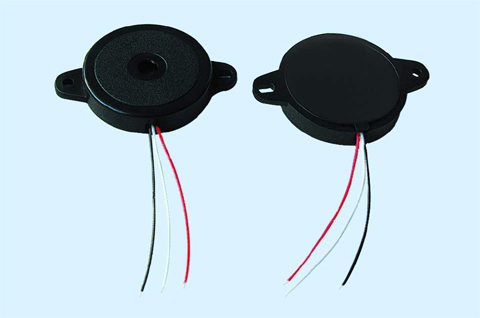

外观图 Appearance

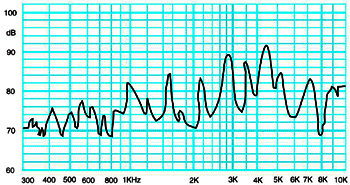

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SP-2445BW
DIMENSIONAL 24.0×5.2mm
OPERATING VOLTAGE                  (VDC) 3-28
CURRENT CONSUMPTION            12VDc(mA) MAX.13
RESONANT FREQUENCY             (KHz) 4.5±0.5
SOUND PRESSURE LEVEL         30cm/12V(dB,Min) MIN.83
OPERATING TEMPERATURE          (℃) -30-+85
STORAGE TEMPERATURE            (℃) -40-+95
WEIGHT                         (g) 1.0

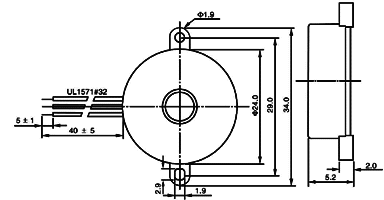

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
