您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SP-2438BT

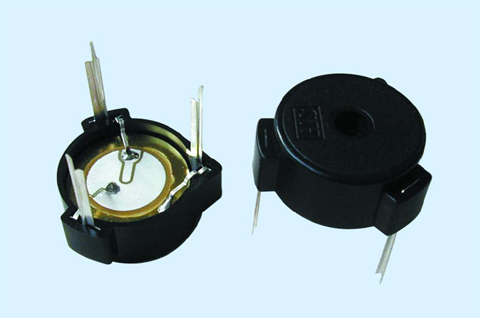

外观图 Appearance

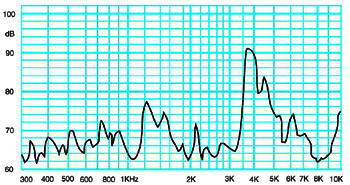

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SP-2438BT
DIMENSIONAL 24.0×11.0mm
OPERATING VOLTAGE                  (VDC) 3-20
CURRENT CONSUMPTION            12VDc(mA) MAX.12
RESONANT FREQUENCY             (KHz) 3.8±0.5
SOUND PRESSURE LEVEL         30cm/12V(dB,Min) MIN.80
OPERATING TEMPERATURE          (℃) -20-+70
STORAGE TEMPERATURE            (℃) -30-+85
WEIGHT                         (g) 1.3

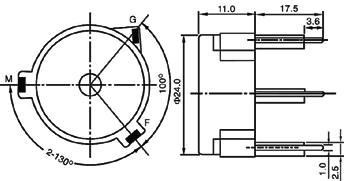

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
