您现在的位置>>公司首页>>主要产品>> 蜂 鸣 器 SHX-1205A

外观图 Appearance

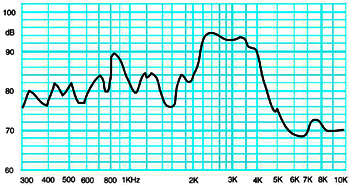

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHX-1205A
DIMENSIONAL 12.0×9.5mm
RATED VOLTAGE                  (VDC) 5.0
CURRENT CONSUMPTION            (mA) MAX.50
DIRECT CURRENT RESISTANCE      (Ohm) 45±15%
RESONANT FREQUENCY             (Hz) 2400
SOUND PRESSURE LEVEL         (10cm/dB) MIN.85
OPERATING TEMPERATURE          (℃) -40-+85
STORAGE TEMPERATURE            (℃) -50-+85
WEIGHT                         (g) 2.0
TERMINAL TWO PIN LEAD TYPE

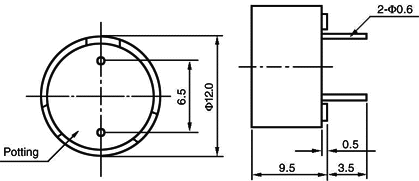

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)
