您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHX-1601A SHX-1606A SHX-1612A

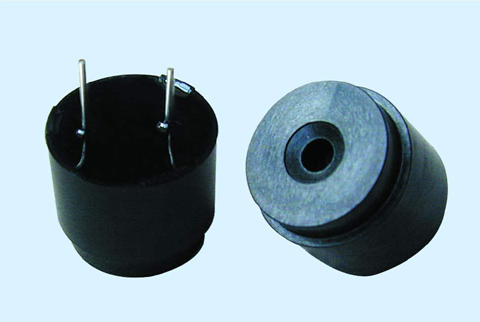

外观图 Appearance

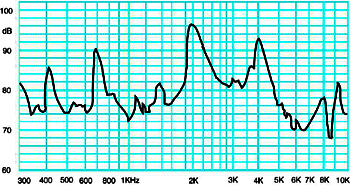

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHX-1601A SXH-1606A SHX-1612A
DIMENSIONAL ∮16.0×14.0mm
RATED VOLTAGE                  (VDC) 1.5 6.0 12.0
CURRENT CONSUMPTION            (mA) MAX.20 MAX.40 MAX.65
DIRECT CURRENT RESISTANCE      (Ohm) 30±15% 50±15% 115±15%
RESONANT FREQUENCY             (Hz) 2048 2048 2048
SOUND PRESSURE LEVEL         (10cm/dB) MIN.80 MIN.85 MIN.85
OPERATING TEMPERATURE          (℃) -40－+85
STORAGE TEMPERATURE            (℃) -50－+95
WEIGHT                         （g） 7.0
TERMINAL TWO PIN LEAD TYPE

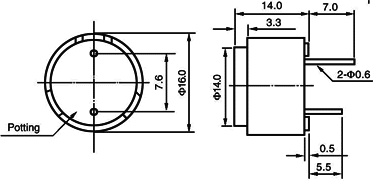

尺寸图 Dimensional Drawing  (Tolerance:±0.5mm  Unit:mm)

　
