您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHQ-1201B  SHQ-1201C

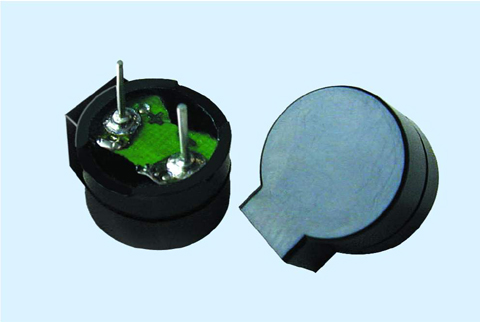

外观图 Appearance

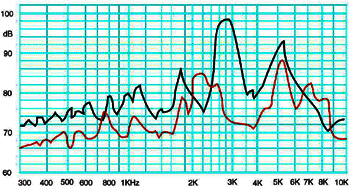

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHQ-1201B SHQ-1201C
DIMENSIONAL 12.0×7.5mm
RATED VOLTAGE                  (VDC) 1.5 1.5
CURRENT CONSUMPTION            (mA) MAX.70 MAX.35
DIRECT CURRENT RESISTANCE      (Ohm) 6.5±15% 16±15%
RESONANT FREQUENCY             (Hz) 2731 2048
SOUND PRESSURE LEVEL         (10cm/dB) MIN.80
OPERATING TEMPERATURE          (℃) -30-+70
STORAGE TEMPERATURE            (℃) -40-+85
WEIGHT                         (g) 2.0
TERMINAL TWO PIN LEAD TYPE

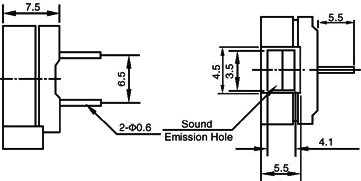

尺寸图 Dimensional Drawing (Tolerance:±0.5mm  Unit:mm)
