您现在的位置>>公司首页>>产品总览>> 蜂 鸣 器 SHX-2506A  SHX-2512A

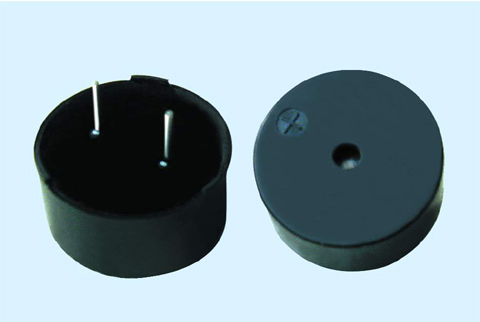

外观图 Appearance

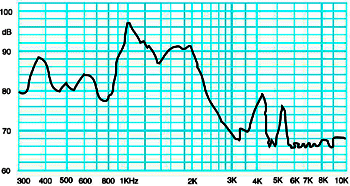

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

MODEL NO SHS-2506A SHS-2512A
DIMENSIONAL ∮25.0×12.5mm
RATED VOLTAGE                  (VDC) 6.0 12.0
CURRENT CONSUMPTION            (mA) MAX.80 MAX.60
DIRECT CURRENT RESISTANCE      (Ohm) 36±15% 115±15%
RESONANT FREQUENCY             (Hz) 1000
SOUND PRESSURE LEVEL         (10cm/dB) MIN.85
OPERATING TEMPERATURE          (℃) -40－+85
STORAGE TEMPERATURE            (℃) -50－+95
WEIGHT                         （g） 10.0
TERMINAL TWO PIN LEAD TYPE

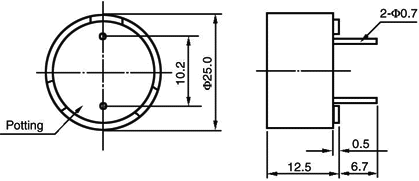

尺寸图 Dimensional Drawing (Tolerance:±0.5mm  Unit:mm)

　
