  Buzzer series---46 products
:: 1-12products::
Appearance Specifications Enter

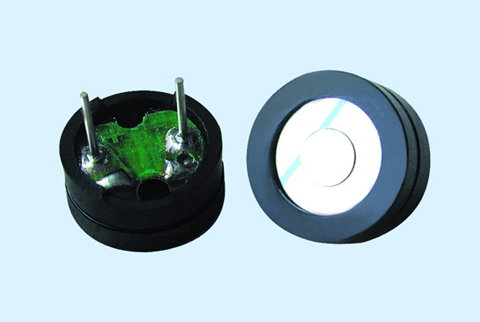

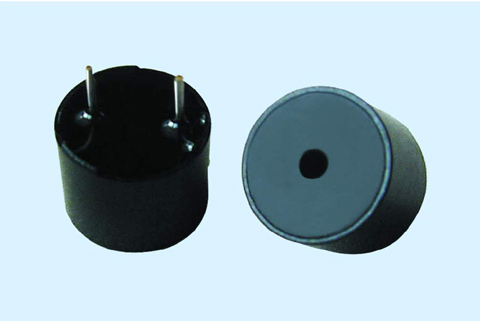

RATED VOLTAGE (VDC) 　1.5/3.5
DIRECT CURRENT RESISTANCE (Ohm) 　16±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

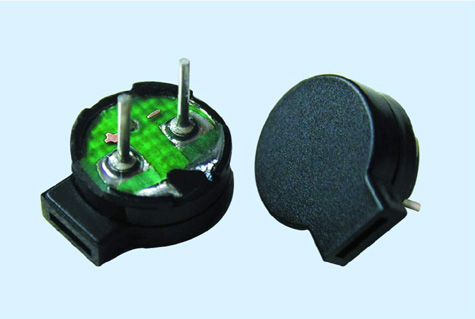

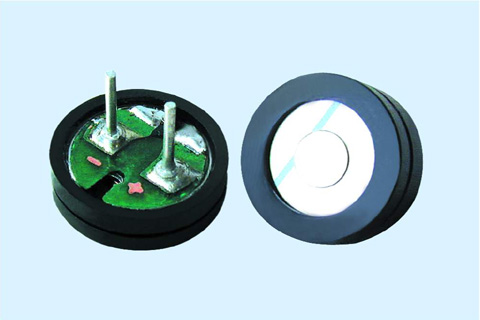

RATED VOLTAGE (VDC) 　1.5
DIRECT CURRENT RESISTANCE (Ohm) 　16±15%
RESONANT FREQUENCY (Hz) 　2048
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.70
TERMINAL TWO PIN LEAD TYPE

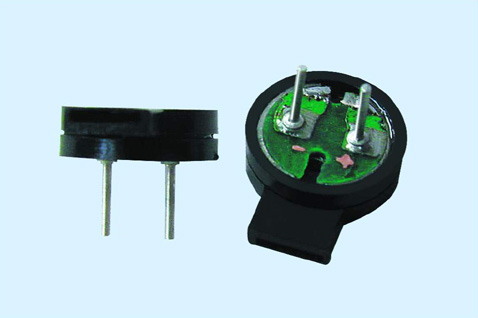

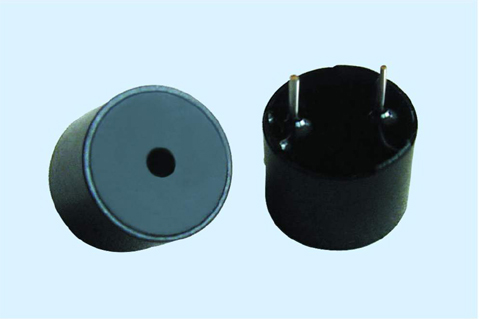

RATED VOLTAGE (VDC) 　5.0
DIRECT CURRENT RESISTANCE (Ohm) 　NONE
RESONANT FREQUENCY (Hz) 　2300±300
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

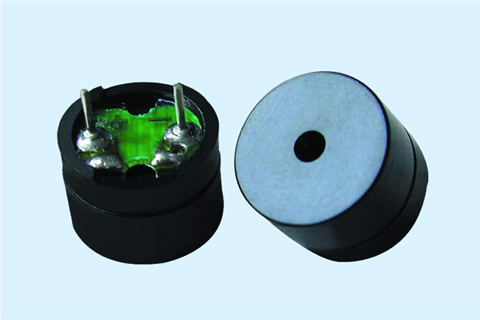

RATED VOLTAGE (VDC) 　5.0
DIRECT CURRENT RESISTANCE (Ohm) 　42±15%
RESONANT FREQUENCY (Hz) 　2400
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

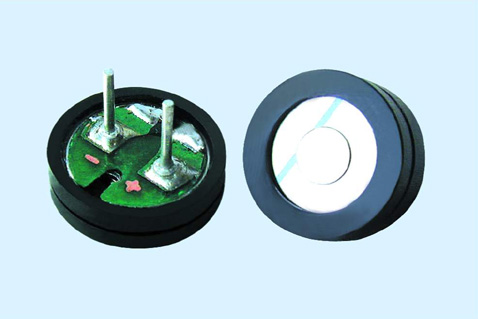

RATED VOLTAGE (VDC) 　3.0
DIRECT CURRENT RESISTANCE (Ohm) 　15±2.0
RESONANT FREQUENCY (Hz) 　2731
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.88
TERMINAL TWO PIN LEAD TYPE

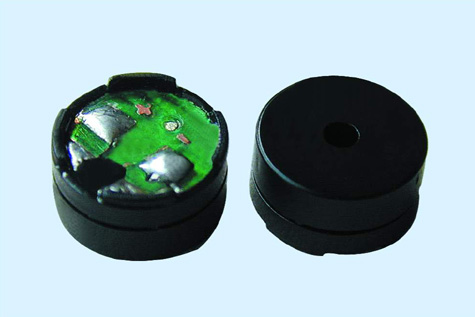

RATED VOLTAGE (VDC) 　1.5/3.0/5.0
DIRECT CURRENT RESISTANCE (Ohm) 　6±15%/15±15%/30±15%
RESONANT FREQUENCY (Hz) 　2731
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

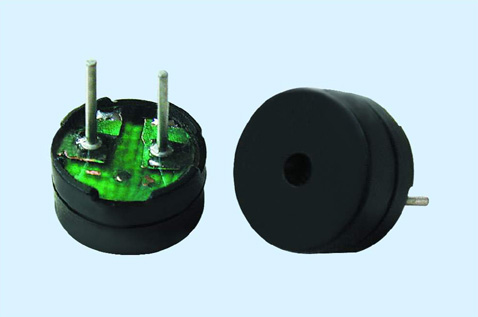

RATED VOLTAGE (VDC) 　　1.5/3.0/5.0
DIRECT CURRENT RESISTANCE (Ohm) 6±15%/15±15%/30±15%
RESONANT FREQUENCY (Hz) 　2731
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE

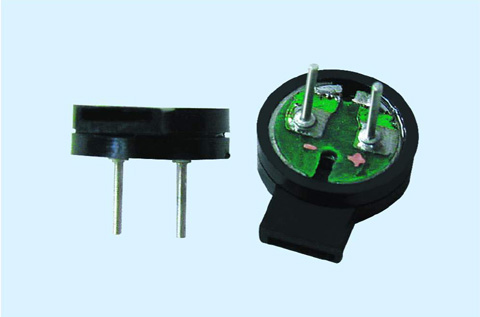

RATED VOLTAGE (VDC) 　1.5/3.0/5.0
DIRECT CURRENT RESISTANCE (Ohm) 6±15%/15±15%/30±15%
RESONANT FREQUENCY (Hz) 　2731
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　3.0
DIRECT CURRENT RESISTANCE (Ohm) 　15±2.0
RESONANT FREQUENCY (Hz) 　2731
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.88
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　3.0
DIRECT CURRENT RESISTANCE (Ohm) 　15±2.0
RESONANT FREQUENCY (Hz) 　2100
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.70
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　3.6
DIRECT CURRENT RESISTANCE (Ohm) 　15±15%
RESONANT FREQUENCY (Hz) 　2730
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.88(Typical92)
TERMINAL TWO PIN LEAD TYPE
RATED VOLTAGE (VDC) 　3.0
DIRECT CURRENT RESISTANCE (Ohm) 　15±2.0
RESONANT FREQUENCY (Hz) 　2100
SOUND PRESSURE LEVEL(10cm/dB) 　MIN.85
TERMINAL TWO PIN LEAD TYPE
