::Electret condenser
microphone for special use of mobile telephone::
|
|
Appearance
|
Specifications
|
Enter |
|
| PFN-T6013L-C10 |
|
| Dimensional
|
∮6.0×1.3mm |
| Frequency
range |
20－160000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Noise
Cancelling |
| Standard
operation voltage |
2.0V |
|
 |
|
| PFN-T1015L-C1033 |
|
| Dimensional
|
∮6.0×1.5mm |
| Frequency
range |
100－10000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Noise
Cancelling |
| Standard
operation voltage |
2.0V |
|
|
|
|
PFO-T6018L-AW |
|
| Dimensional
|
∮6.0×1.8mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
| PFO-T6020L-C100 |
|
| Dimensional
|
∮6.0×2.0mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
|
PFO-T6022S-C1033-HB |
|
| Dimensional
|
∮6.0×2.2mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
|
PFO-T6022S-C1033-LB |
|
| Dimensional
|
∮6.0×2.2mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
PFO-T6022P-C1033 |
|
| Dimensional
|
∮6.0×2.2mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
PFO-T6025P-C33 |
|
| Dimensional
|
∮6.0×2.5mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
|
PFO-T6027S |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
| PFO-T6027L-C1033-BY |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
| PFO-T6027P-C33 |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
PFO-T6027S-C1033 |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
| PFN-T6027P-C1033 |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Noise
Cancelling |
| Standard
operation voltage |
2.0V |
|
|
|
PFO-T6027LP-C1033-BY |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
 |
|
PFO-T6027L |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|

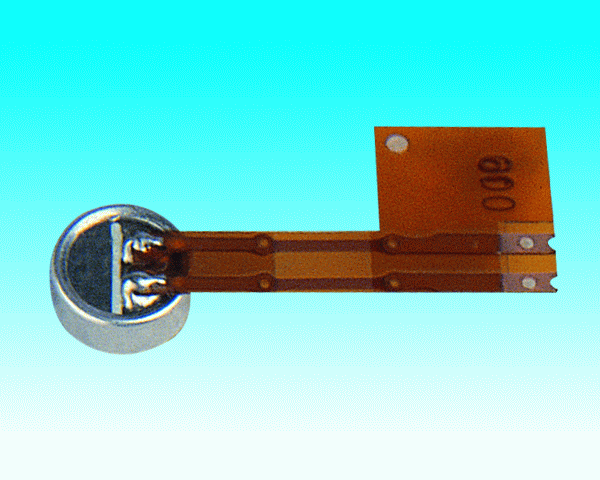

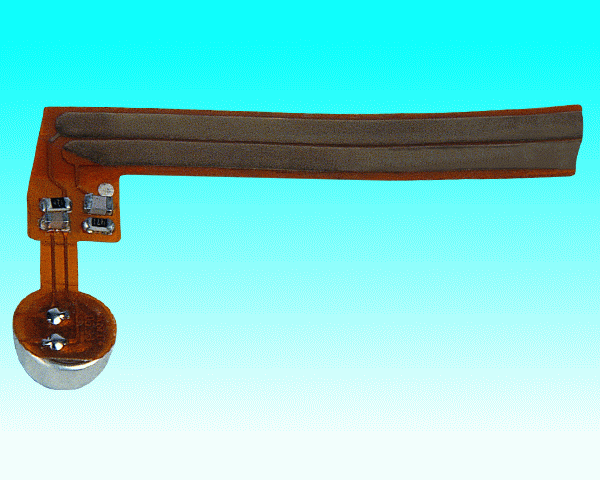

PFO-T6027-C1033-FPC |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
PFO-T6027-C1051R470-FPC |
|
| Dimensional
|
∮6.0×2.7mm |
| Frequency
range |
50－12000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
PFO-T6030L-C1033 |
|
| Dimensional
|
∮6.0×3.0mm |
| Frequency
range |
20－16000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
2.0V |
|
|
|
|
PFO-6035L |
|
| Dimensional
|
∮6.0×3.5mm |
| Frequency
range |
40－12000Hz |
| Sensitivity |
|
| Impedance |
Less
than 2.2KΩ |
| Directivity |
Omnidirectional |
| Standard
operation voltage |
3.0V |
|
|
|
|
