外观图 Appearance

频响曲线 Typical Frequency Response Curve

技术特性 Specifications

MODEL NO	SHS-1003F2
DIMENSIONAL	∮10.0×2.8mm
RATED VOLTAGE (VDC)	3.0
CURRENT CONSUMPTION (mA)	MAX.100
DIRECT CURRENT RESISTANCE (Ohm)	15±2.0
RESONANT FREQUENCY (Hz)	2731
SOUND PRESSURE LEVEL (10cm/dB)	MIN.88
OPERATING TEMPERATURE (℃)	-20－+60
STORAGE TEMPERATURE (℃)	-30－+70
WEIGHT （g）	0.6
TERMINAL	TWO PIN LEAD TYPE

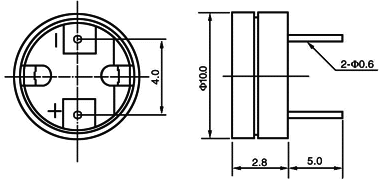

尺寸图 Dimensional Drawing (Tolerance:±0.5mm Unit:mm)
