您现在的位置>>公司首页>>产品总览>> 扬 声 器
::扬 声 器::

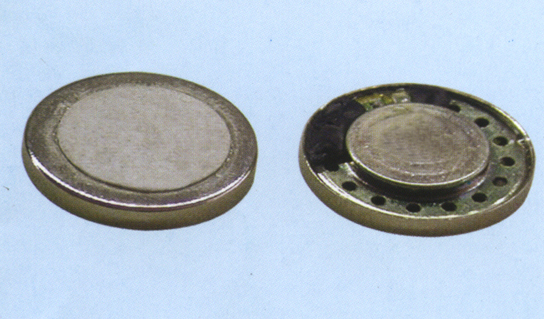

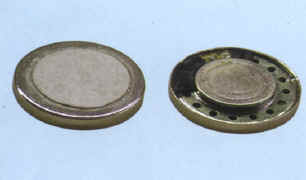

外观图 Appearance 技术特性 Specifications Enter
DIMENSIONAL ∮20.0×3.4mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
1mw on IECR 318
Standard 112±3dB
RESONANCE FREQUENCY 300-5KHz
DIMENSIONAL ∮20.0×3.5mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
60mw on IECR 318
Standard 90±3dB
RESONANCE FREQUENCY 300-4KHz
DIMENSIONAL ∮20.0×3.5mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
100mw on IECR 318
Standard 93±3dB
RESONANCE FREQUENCY 200-4KHz
DIMENSIONAL ∮20.0×4.0mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
60mw on IECR 318
Standard 90±3dB
RESONANCE FREQUENCY 300-3KHz
DIMENSIONAL ∮20.0×5.6mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
1mw on IECR 318
Standard 112±3dB
RESONANCE FREQUENCY 300-5KHz
DIMENSIONAL ∮15.0×5.3mm
NOMINAL POWER 0.05w
IMPEDANCE  32ohm±15% at 1KHz
SOUND PRESSURE LEVEL
69±3dB
RESONANCE FREQUENCY 1150±20%Hz
DIMENSIONAL ∮20.0×3.5mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at 1KHz
SOUND PRESSURE LEVEL
100mw on IECR 318
Standard 93±3dB
RESONANCE FREQUENCY 200-4KHz
