外观图 Appearance

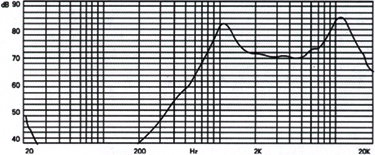

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

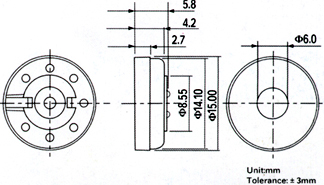

尺寸图 Dimensional

MODEL NO PFC-1553MM-8Ω
DIMENSIONAL 15.0×5.3mm
IMPEDANCE  32ohm±15% at1KHz
NOMINAL POWER 0.05W
MAXIMUM POWER 0.10W
RESONANCE FREQUENCY 1150±20%Hz
EFFECTIVE FREQ.RANGE Fo-10KHz
SOUND PRESSURE LEVEL

69±3dB
