您现在的位置>>公司首页>>产品总览>>扬 声 器 PFC-2046SM-8Ω

外观图 Appearance

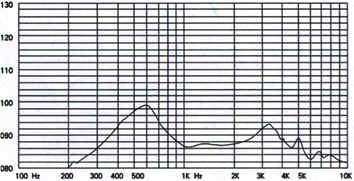

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

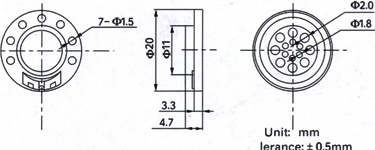

尺寸图 Dimensional

MODEL NO PFC-2046SM-8Ω
DIMENSIONAL 20.0×4.6mm
IMPEDANCE  8ohm±15% at1KHz
NOMINAL POWER 0.2W
MAXIMUM POWER 0.3W
RESONANCE FREQUENCY 600±20%Hz
EFFECTIVE FREQ.RANGE Fo-8KHz
SOUND PRESSURE LEVEL

86±3dB
