您现在的位置>>公司首页>>产品总览>>扬 声 器 PFS-1530MM-150Ω

外观图 Appearance

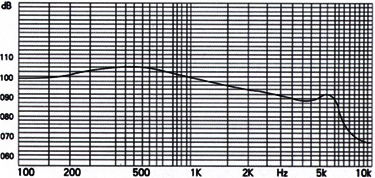

频响曲线 Typical Frequency Response Curve


技术特性 Specifications

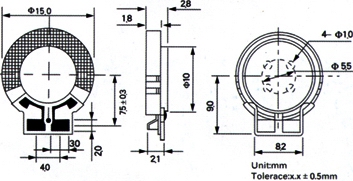

尺寸图 Dimensional

MODEL NO PFS-1530MM-150Ω
DIMENSIONAL 15.0×2.8mm
NOMINAL POWER 1mw
IMPEDANCE  150ohm±15% at1KHz
SOUND PRESSURE LEVEL

1mw on IECR 318

Standard 96±3dB

RESONANCE FREQUENCY 200-5KHz
